BonFire

SKU: C-628
$ 1,741
2 In Stock
Accessories:

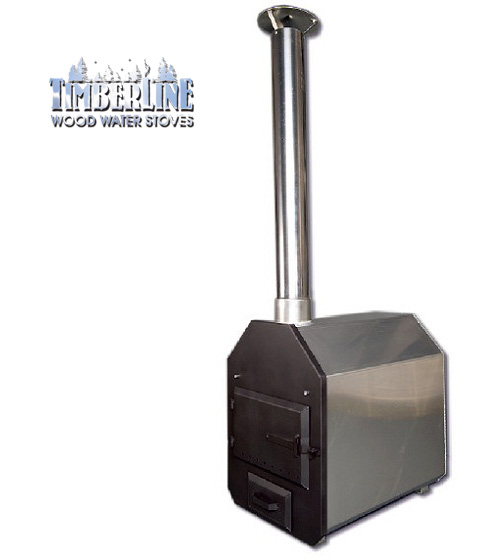

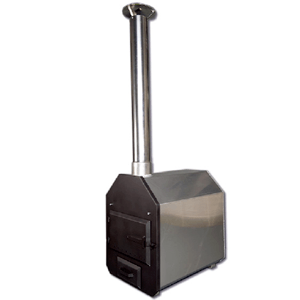

The Bonfire is a great hot tub and pool heater for all sizes. It is made of lightweight aluminum so it is easier to move for seasonal pool owners and will never rust.

Material Aluminum
Dimensions 732 x 466 x 491 H (28.8” x 18.3” x 19.3” ) H x L x W
Weight 30 Kg (66 lbs.)
Fire Box Internal: 22 ½" 16" and 10"
Power Rating 20 Kw (70,000 BTU)
Includes Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve

Feature

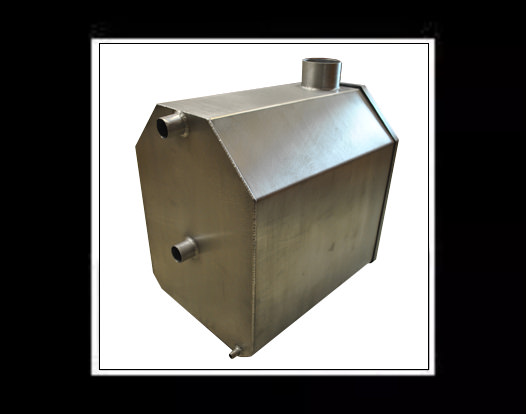

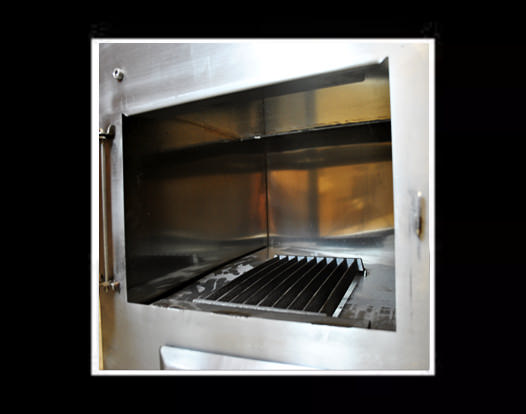

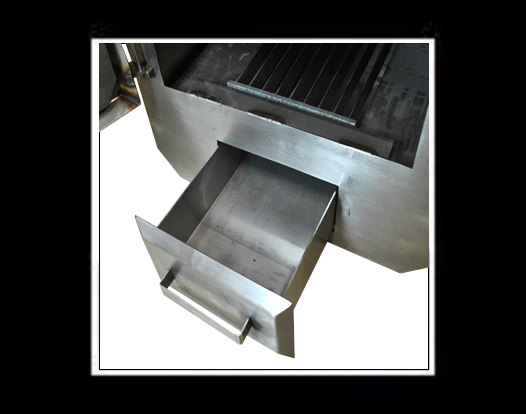

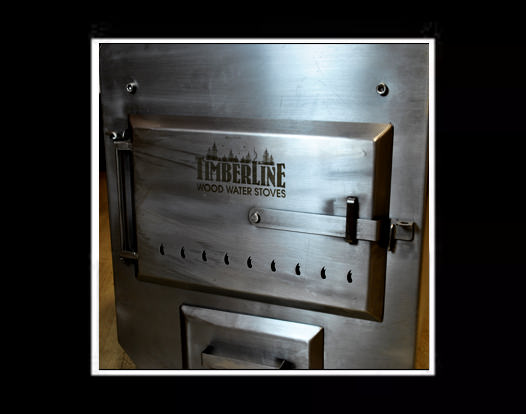

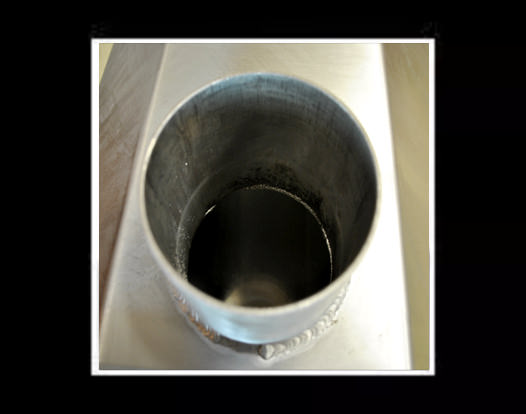

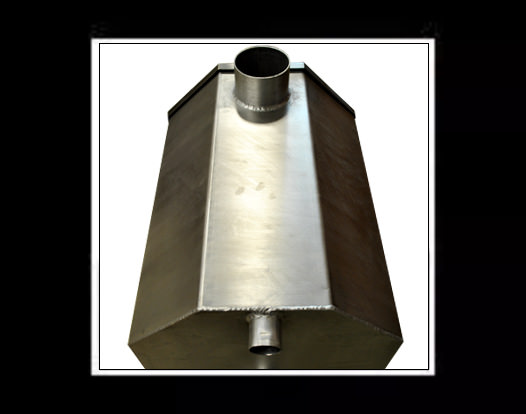

The Bonfire is a great hot tub and pool heater for all sizes. It is made of lightweight aluminum so it is easier to move for seasonal pool owners and will never rust. The front face plate comes in aluminum or painted metal. Included are 3 lengths of chimney totaling 9 feet plus as stainless steel rain cap. A stainless steel flue adjustment in the chimney allows you to accurately control the fire. Interior fire box contains water baffles for extra heat as well as cast iron wood grate. Easy to clean ash tray is also used to remove ashes and add extra air ventilation during operation. An internal water temperature probe allows you to quickly read the operating water temp and make adjustments.

Pool and Hot Tub Water Heater Specifications:

 Small Camp FireMed BlazeLarge Inferno
BTU/hour (Kw/hr) 35,000 (10 KW/hr) 55,000 (16 KW/hr) 105,000 (30 KW/hr)
Dimensions 670x430 (26.5" x 17") 750x480 (29.5"x19") 950x600 (37.5"x23.5")
Fire Box (length) 630 (24.8") 710 (27.9")  910 (35.8")
Thickness 2-3 mm 2-3 mm  2-3 mm
Material AISI 430 Stainless AISI 430 Stainless  AISI 430 Stainless
Chimney Size 5" 5"  5"
Pipe Connections 1 1/2" 1 1/2" 1 1/2"
Max operating Pressure 11 PSI 11 PSI 11 PSI
